Compact, full-range 4-channel amplifier delivering 1,200 watts of clean power. Stable at 2 ohms stereo or 4 ohms bridged, perfect for powering DC Audio door speakers or complete front/rear systems.
Compact Size. Big Power. Pure DC Audio Performance.

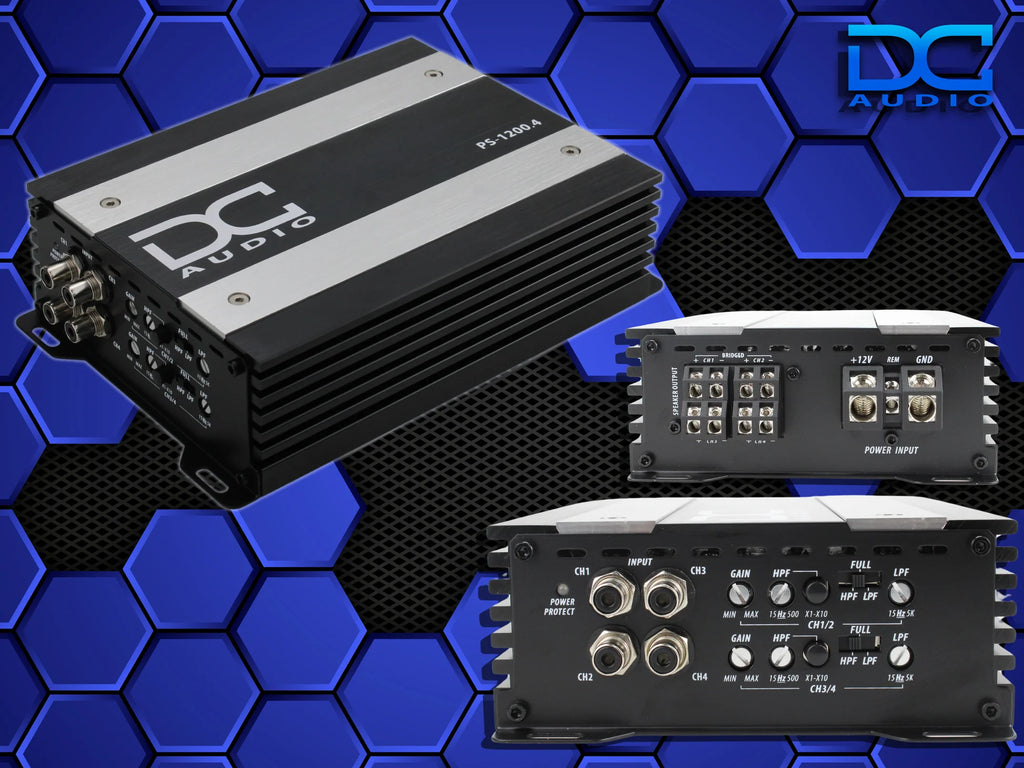

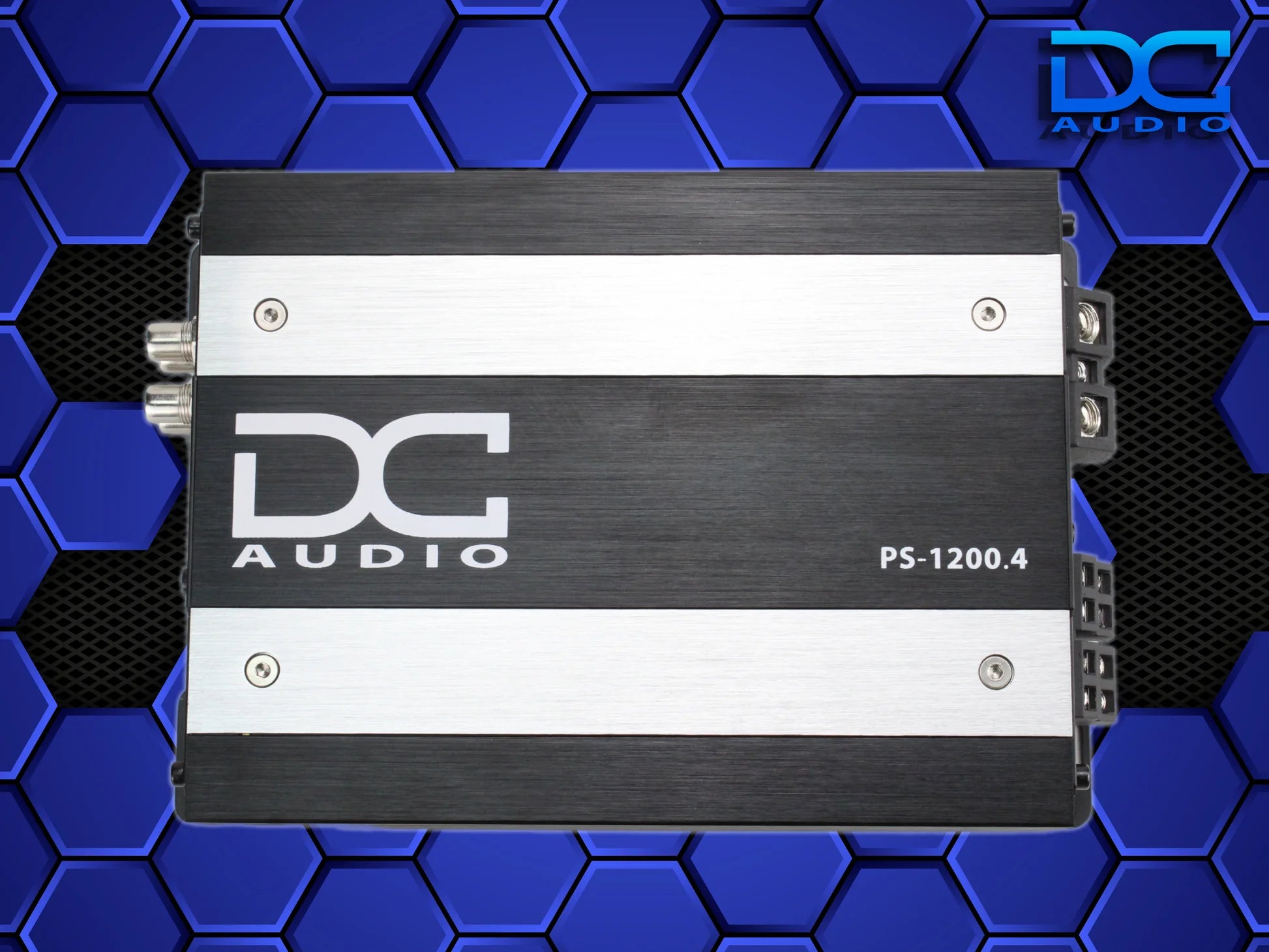

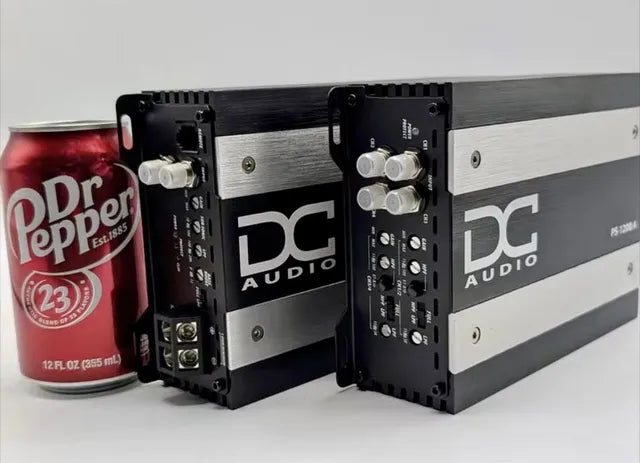

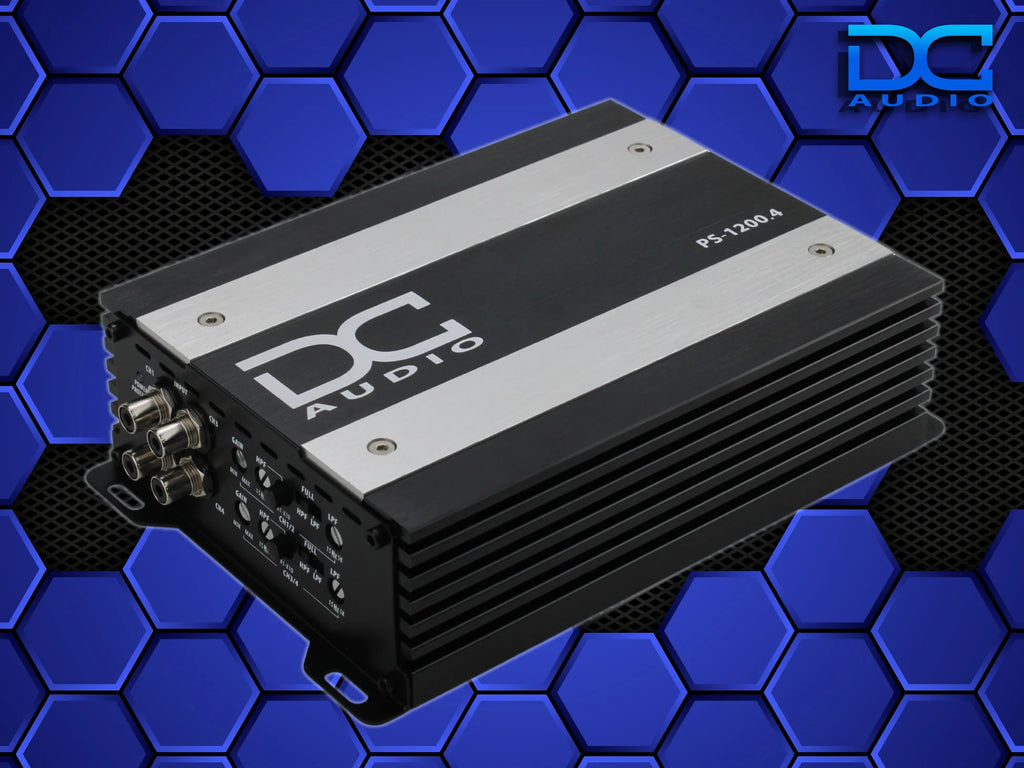

The DC Audio PS1200x4 Mini 4-Channel Amplifier packs serious power into a small, durable chassis. Don’t let the size fool you—this amp delivers clean, efficient output that’s perfect for running your DC Audio coaxial speakers or full front/rear door setups in your Squarebody.
It’s full-range, bridgeable, and built to handle everything from crisp mids to clean highs. Whether you’re powering our Blazin’ Biddles Off-Road Lower Door Panels or building a complete DC Audio system, this amp delivers plenty of headroom and distortion-free sound.
Power Ratings (RMS Output)
| Configuration | Power Output @ 14.4V |
|---|---|
| 4 Ohms Stereo | 190 W x 4 |
| 2 Ohms Stereo | 300 W x 4 |
| 4 Ohms Bridged | 600 W x 2 |
| Total Output | Up to 1,200 W RMS |
Key Features
-
Compact Full-Bridge Design: Fits tight spaces while staying cool under load.
-

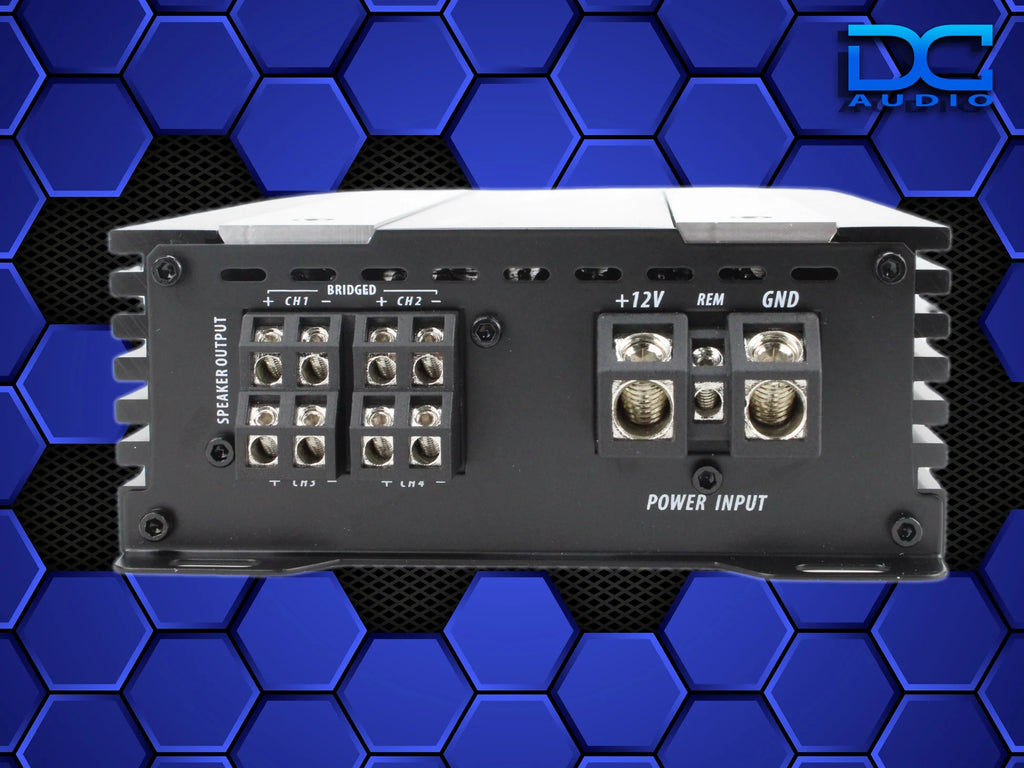

2Ω Stereo / 4Ω Bridged Stable: Flexible wiring options for any setup.
-

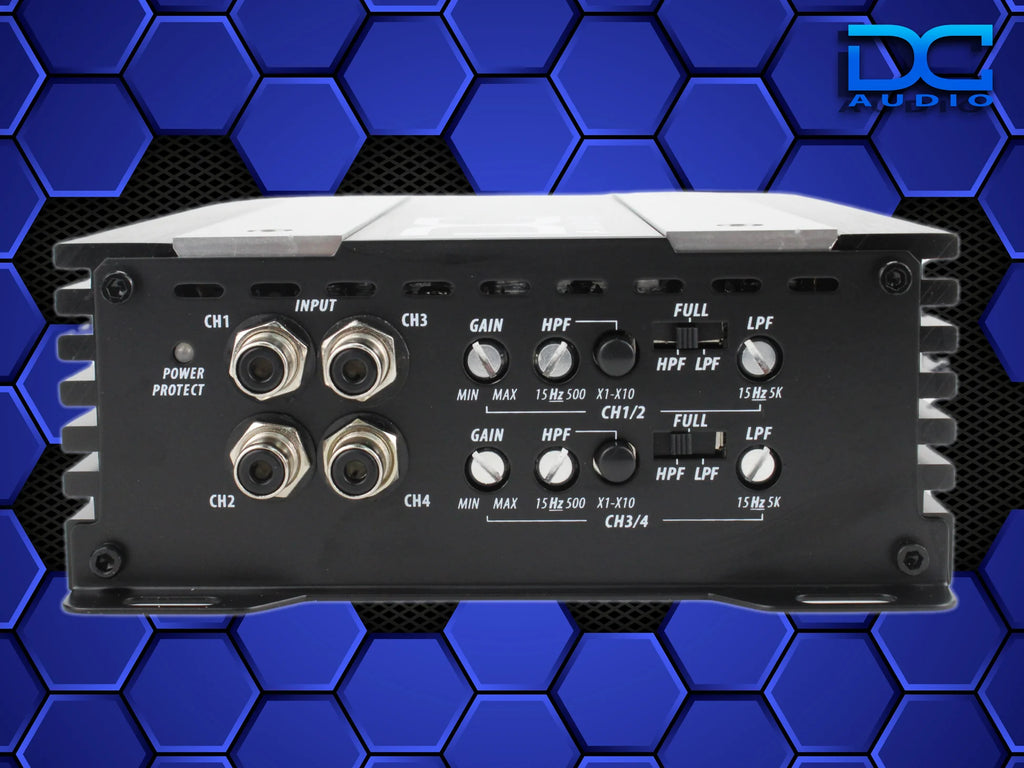

Variable High & Low Pass Filters: 50Hz–500Hz adjustable crossovers.
-
Full Range Output: Clean sound from mid-bass to tweeters.
-
High Voltage Capability: Operates from 9V–16.5V for real-world reliability.
-
Tiffany-Style RCA Inputs: Secure, high-quality signal connection.
-
Power / Protect LED Indicators: Simple, reliable operation feedback.
-
Rugged Aluminum Heat Sink: Compact, efficient cooling.
Amp Specifications
| Specification | Detail |
|---|---|
| Model | DC Audio PS1200x4 |
| Input Sensitivity | 4V – 0.4V |
| Frequency Response | 10 Hz – 20 kHz |
| Crossover Type | 12 dB/Octave High & Low Pass |
| Subsonic Filter | No |
| Bass Boost | No |
| Damping Factor | >90 |
| THD @ 4Ω | <1% |
| Signal-to-Noise Ratio | 90 dB |
| Fuse Rating | External 100A |
| LED Indicators | Power / Protect |
| Size (L × W × H) | 7.76" × 5.23" × 2.3" |
| Master/Slave Link | No |
| Remote Control | Not Required |
Perfect Pairings
-
DC Audio DC-65CX 6.5” Coaxial Speakers (Door Panels)
-
DC Audio DC-6x9CX Coaxials (Rear Cargo or Side Panels)
-
Blazin’ Biddles Off-Road Lower Door Panels – Pre-wired and sealed for DC Audio integration
Running this amp on all four channels will give you crisp, distortion-free sound front to rear — or bridge it for serious power on a two-speaker setup.
Why Choose DC Audio
-
Proven reliability in high-demand audio builds
-
Compact design with full-size power and control
-
Ideal for Squarebody audio upgrades where space is limited
-
Engineered for clean, dynamic sound at any volume
Pricing & Shipping
-
Sale Price: $329.99 USD
-
Regular Price: $399.99 USD
-
Shipping Code (HS): 8518.40.0000 – Audio-frequency amplifiers
