🔥 8,000 Watts. 1 Ohm Stable. Mini Chassis.

The DC Audio PS-8000x1 is a full-bridge compact monoblock capable of delivering an incredible 8,000 watts RMS at 1 ohm — in a footprint far smaller than traditional 8K amplifiers.

Designed for maximum output in limited space, this is a true high-power solution for:

• Extreme subwoofer builds

• Competition-level systems

• High-output stunt walls

• Full-range pro audio doors

With 1/0 power inputs, onboard clipping lights, and a wired bass knob included, the PS-8000x1 is built to move serious air.

💪 RMS Power Ratings (14.4V)

• 2,000W x 1 @ 4 Ohms

• 4,000W x 1 @ 2 Ohms

• 8,000W x 1 @ 1 Ohm

✔ 1 Ohm Stable
✔ Full Bridge Design
✔ Extreme Output Mono Block

🎛 Subwoofer OR Full Range

Flip the Full Range Switch and this amplifier can power:

• Subwoofers

• Midbass drivers

• Pro audio mids

• Stunt walls

• High-output door systems

Massive power. Flexible application.

⚙️ Key Features

• 1 Ohm Stable

• 9–16.5V Operating Voltage

• Variable Low Pass Filter (50Hz – 15kHz)

• Variable Subsonic Filter

• Bass Boost

• Wired Bass Knob Included

• Onboard Power / Protect / Clip Indicators

• Tiffany Style RCA Inputs

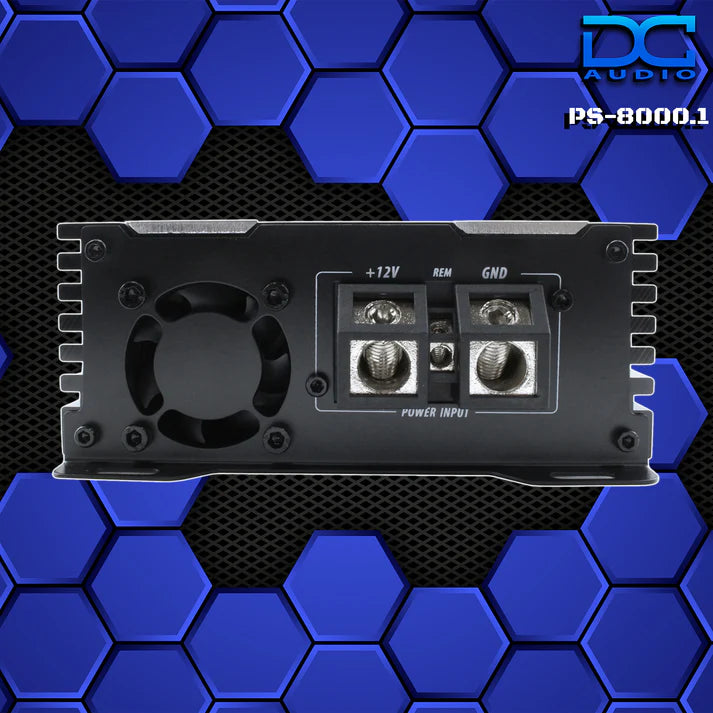

• 1/0 AWG Power & Ground Inputs

• Super Compact High-Power Design

📊 Technical Specifications

Model: PS-8000.1
Input Sensitivity: 4V – 0.4V
Frequency Response: 10Hz – 20kHz
Crossover Slope: 12dB / Octave
Low Pass Filter: 50Hz – 15kHz
Subsonic Filter: Yes
Bass Boost: Yes
Full Range Switch: Yes
Phase Shift: No
Remote Level Control: Yes (Included)
Clip Indicator: Yes
Signal to Noise Ratio: 90dB
THD @ 4 Ohms: <0.1%
Fuse Rating: External 500A
LED Status Lights: Power / Protect / Clip
Master/Slave: No

📐 Dimensions

• Length: TBD (Manufacturer spec pending)

• Width: 5.23” (133mm)

• Height: 2.3” (60mm)

Compact height and width allow flexible mounting in custom amp racks and competition builds.

🔧 Ideal For

• 3–6 High Output Subwoofers @ 1 Ohm

• Competition-Level SPL Builds

• Extreme Daily Systems

• Large Pro Audio Door Builds

• Stunt Wall Systems

📦 What’s Included

• DC Audio PS-8000x1 Amplifier

• Wired Bass Knob Remote

• Mounting Hardware

• Owner Documentation

⚡ Installation & Electrical Requirements

This amplifier requires serious electrical support.

Recommended:

• High-output alternator

• Multiple AGM or lithium batteries

• 1/0 OFC wiring minimum

• Proper fuse protection within 18” of battery

• Professional installation strongly advised

An 8,000W amplifier will only perform properly with adequate voltage stability.
