🔥 3,000 Watts. 1 Ohm Stable. Compact Footprint.

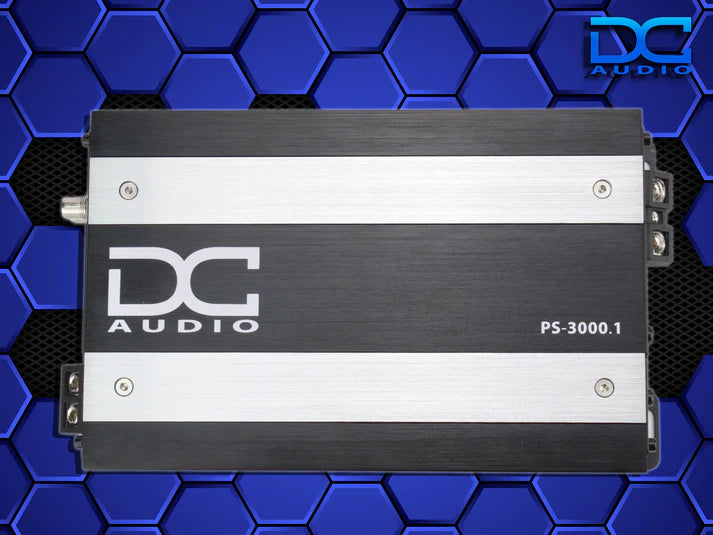

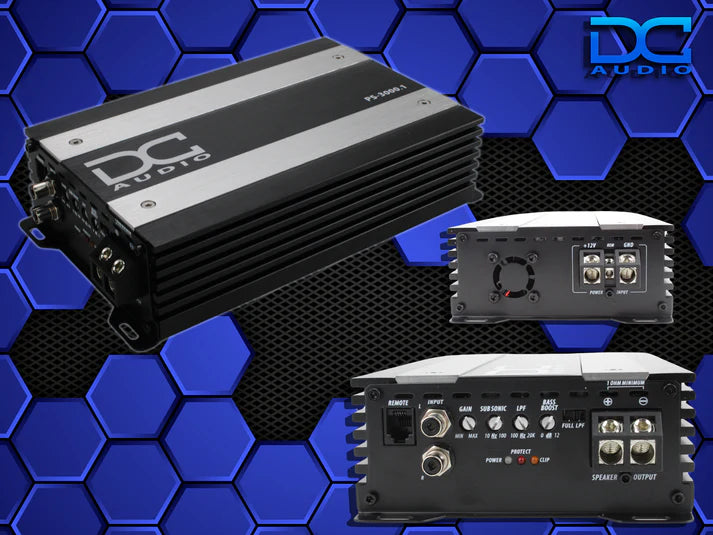

The DC Audio PS-3000x1 is a full-bridge compact monoblock amplifier designed to deliver a massive 3,000 watts RMS at 1 ohm — without taking up your entire trunk.

Built for serious output in a tight chassis, this high-power mono block is perfect for:

• High-output subwoofer systems

• Competition builds

• Stunt walls

• Pro audio door setups

• Full-range high power applications

With onboard clipping lights, full range capability, and a wired bass knob included, this amp gives you the power and control you need to push your system hard — safely.

💪 RMS Power Ratings (14.4V)

• 900W x 1 @ 4 Ohms

• 1,800W x 1 @ 2 Ohms

• 3,000W x 1 @ 1 Ohm

✔ 1 Ohm Stable
✔ Full Bridge Design
✔ High Power Mono Block

🎛 Full Range or Subwoofer Use

The built-in Full Range Switch allows you to run:

• Subwoofers

• Midbass drivers

• Pro audio mids

• High output stunt walls

• Door builds

This makes the PS-3000x1 extremely versatile beyond traditional subwoofer duty.

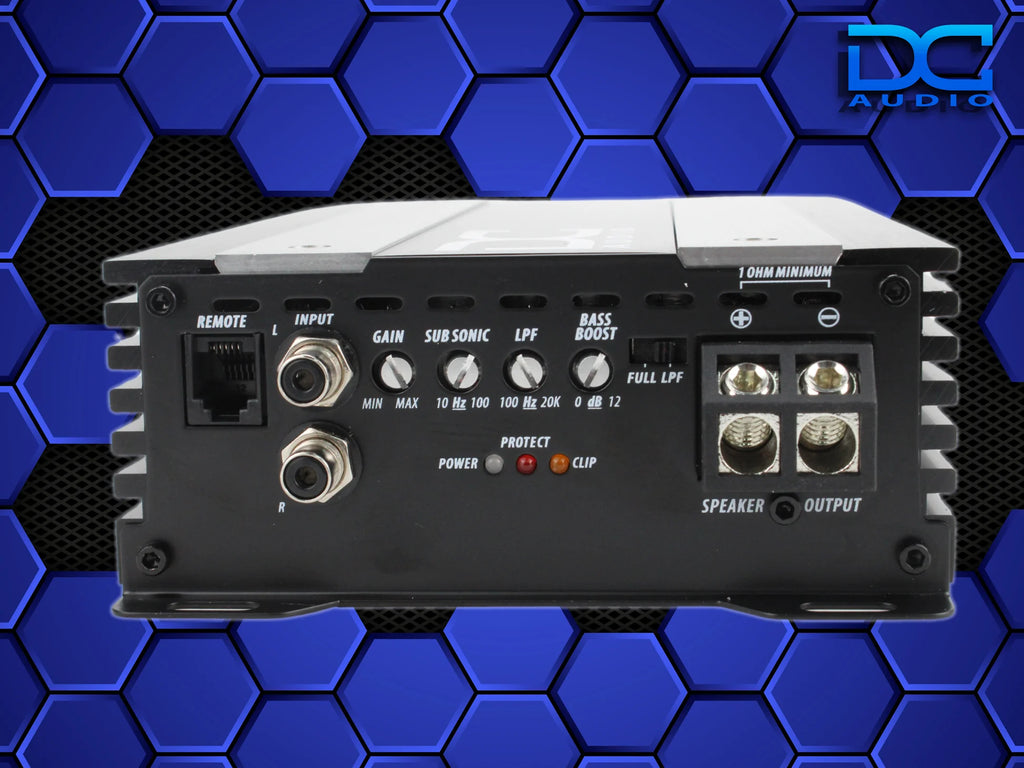

⚙️ Key Features

• 1 Ohm Stable

• 9–16.5V Operating Voltage

• Variable Low Pass Filter (50Hz – 15kHz)

• Variable Subsonic Filter

• Bass Boost

• Wired Bass Knob Included

• Onboard Power / Protect / Clip Indicators

• Tiffany Style RCA Inputs

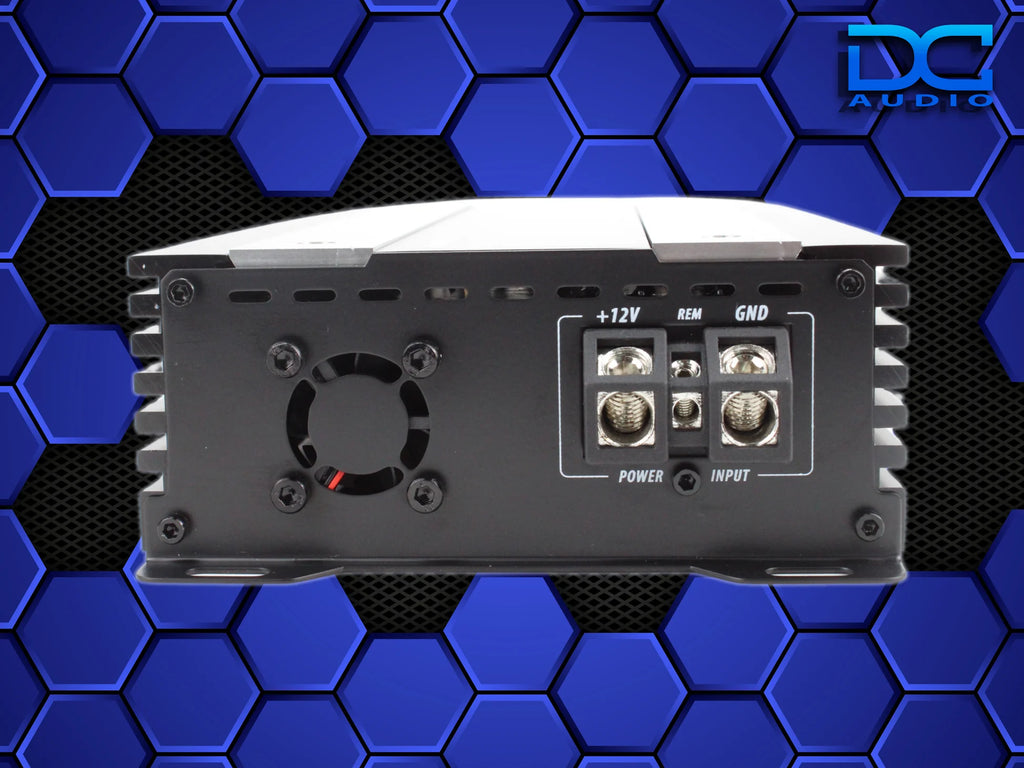

• 4 AWG Power & Ground Inputs

• Super Compact Design

• Built for High Output Systems

📊 Technical Specifications

Model: PS-3000.1
Input Sensitivity: 4V – 0.4V
Frequency Response: 10Hz – 20kHz
Crossover Slope: 12dB / Octave
Low Pass Filter: 50Hz – 15kHz
Subsonic Filter: Yes
Bass Boost: Yes
Full Range Switch: Yes
Phase Shift: No
Remote Level Control: Yes (Included)
Clip Indicator: Yes
Signal to Noise Ratio: 90dB
THD @ 4 Ohms: <0.1%
Fuse Rating: External 200A
LED Status Lights: Power / Protect / Clip
Master/Slave: No

📐 Dimensions

• Length: 8.98” (228mm)

• Width: 5.23” (133mm)

• Height: 2.3” (60mm)

Compact enough for stacked installations and custom amp racks — powerful enough for serious builds.

🔧 Ideal For

• 2–4 High Output Subwoofers @ 1 Ohm

• Competition Level Daily Builds

• High Power Pro Audio Systems

• Stunt Walls

• High Output Midbass Setups

📦 What’s Included

• DC Audio PS-3000x1 Amplifier

• Wired Bass Knob Remote

• Mounting Hardware

• Owner Documentation

⚡ Installation & Electrical Notes

Professional installation strongly recommended.
Upgrade vehicle electrical system for 3,000W systems.
Use proper high-current wiring and fuse protection within 18” of battery.
Ensure alternator and battery capacity support high output applications.
