$374.99
✔ Direct fit for 1981–1991 K5 Blazer, Jimmy & Suburban
✔ Adjustable cup holder fits modern bottles & drinks
✔ Raises console for better ergonomics
✔ Clean interior upgrade without going overboard
• Ships from Paradise, California
• Built in small batches
• Secure checkout
• Trusted by Squarebody owners
• Designed for 1981–1991 K5 Blazer, Jimmy & Suburban center consoles
• Basic hand tools required
• Install time: approximately 15–30 minutes
• Consoles require minor trimming for Cup Holder Installation
• Unsure about your setup? Message us with a photo and we’ll confirm

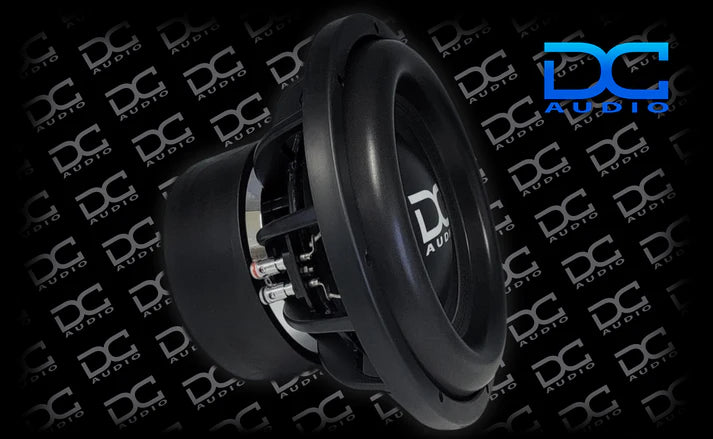

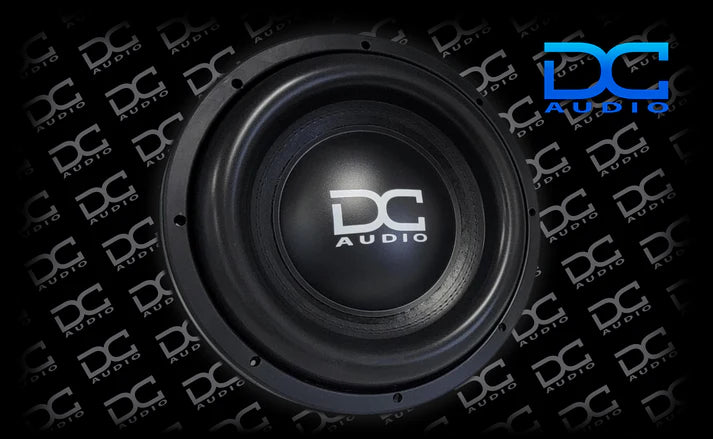

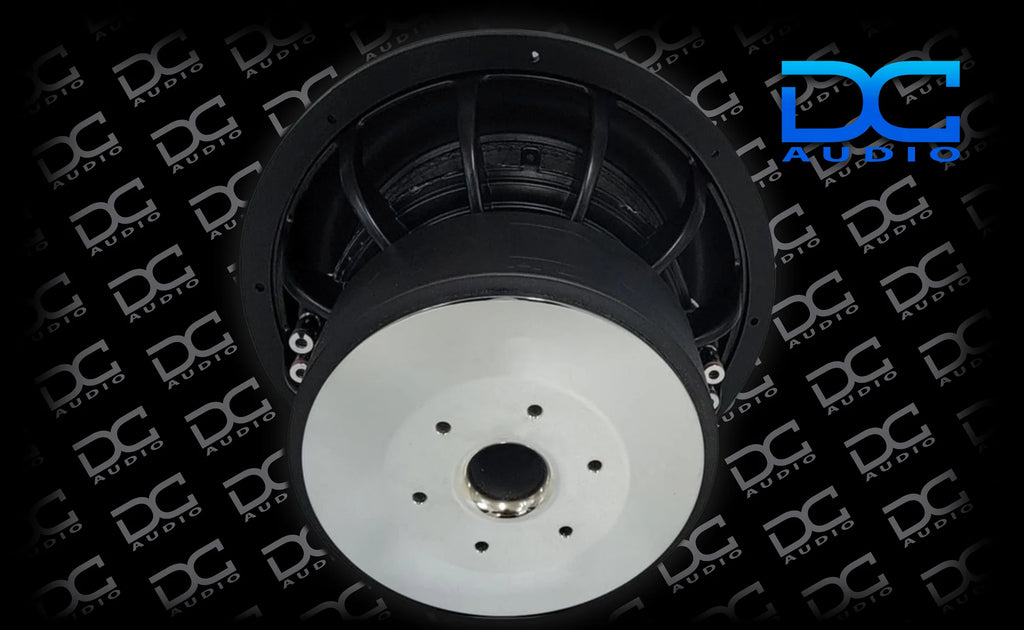

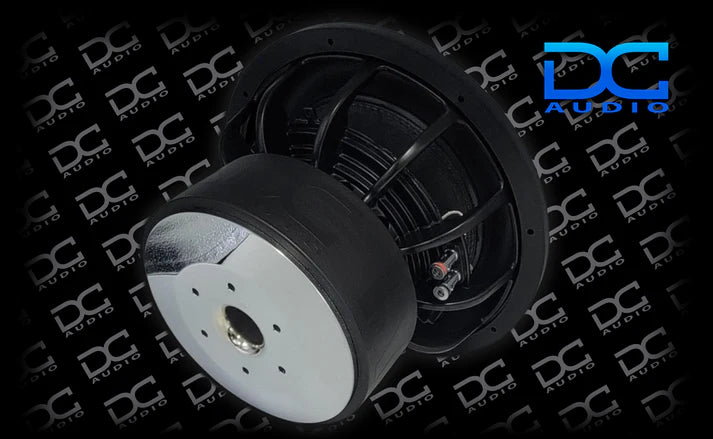

The DC Audio Level 4 (M4) is the next step up for customers who want more output, more authority, and more thermal control than the Level 3.
If the Level 3 is the ultimate daily driver, the Level 4 is the loud daily / aggressive street bass upgrade.
🔥 1500 Watts RMS – 3000 Watts Peak
-
1500 Watts RMS
-
3000 Watts Peak
-
Available in Dual 1Ω, Dual 2Ω, Dual 4Ω
-
Sizes: 10”, 12”, 15”, 18”
This sub was designed to handle real power and deliver smashing low frequency output.
Perfect pairing with:
-
PS2000x1 (single sub)
-
PS3000x1 (dual setup)
-
PS8000x1 (multi-sub builds)
🧠 Advanced Cooling & Motor Technology
The Level 4 now includes a 2.5mm aluminum shorting ring (demodulation ring) which:
-
Reduces inductance
-
Lowers distortion
-
Reduces power compression
-
Pulls heat from the coil windings
-
Acts as an internal heat sink
Combined with direct-to-coil venting, airflow cycles across the coil and aluminum shorting ring simultaneously — dramatically improving heat dissipation under load.
💪 Motor & Suspension Upgrades
-
Large triple stacked FEA-optimized motor
-
Chrome top plate & T-yoke
-
23.5mm Xmax
-
3” High-temp 8-layer flat wound aluminum voice coil
-
Triple 8” progressive spiders
-
Multilayer polymer stitched surround
-
Extremely rigid non-pressed paper cone
-
Cast aluminum black frame
-
Heavy-duty sewn tinsel leads
-
Chrome spring-loaded push terminals
-
Rubber DC & LV4 embossed magnet boot
-
Rubber mounting gasket
This is built for serious output while maintaining musical control.
📊 Technical Specifications
| Specification | 10" | 12" | 15" | 18" |
|---|---|---|---|---|
| Mounting Depth | 6.25" | 6.75" | 8" | 9.5" |
| Mounting Hole | 9.35" | 11" | 14" | 16.75" |
| Outside Diameter | 11" | 12.5" | 15.7" | 18.5" |
| Voice Coil | 3.0" | 3.0" | 3.0" | 3.0" |
| Xmax | 23.5mm | 23.5mm | 23.5mm | 23.5mm |
| RMS/Peak | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
| Ohm Options | D1/D2/D4 | D1/D2/D4 | D1/D2/D4 | D1/D2/D4 |
📦 Recommended Enclosures (Per Sub)
🔹 Sealed
-
10” – .75 cu ft
-
12” – 1.0 cu ft
-
15” – 2.0 cu ft
-
18” – 3.5 cu ft
🔹 Ported
-
10” – 1.0 cu ft
-
12” – 1.5 cu ft
-
15” – 3.0 cu ft
-
18” – 5.5 cu ft
🎯 Ideal For
-
Loud daily drivers
-
Aggressive street bass builds
-
Dual sub setups
-
High power ported enclosures
-
Systems stepping beyond entry-level
This is the sub for customers who want to feel the difference.
📦 What’s Included
-
DC Audio Level 4 Subwoofer
-
Rubber Mounting Gasket
-
DC Embossed Magnet Boot
