$299.99
✔ Direct fit for 1981–1991 K5 Blazer, Jimmy & Suburban
✔ Adjustable cup holder fits modern bottles & drinks
✔ Raises console for better ergonomics
✔ Clean interior upgrade without going overboard
• Ships from Paradise, California
• Built in small batches
• Secure checkout
• Trusted by Squarebody owners
• Designed for 1981–1991 K5 Blazer, Jimmy & Suburban center consoles
• Basic hand tools required
• Install time: approximately 15–30 minutes
• Consoles require minor trimming for Cup Holder Installation
• Unsure about your setup? Message us with a photo and we’ll confirm
Hand Built in the USA
Build Time: 7–14 Business Days

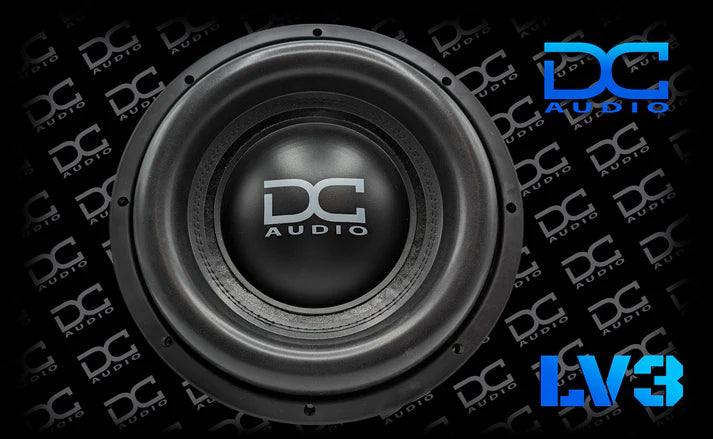

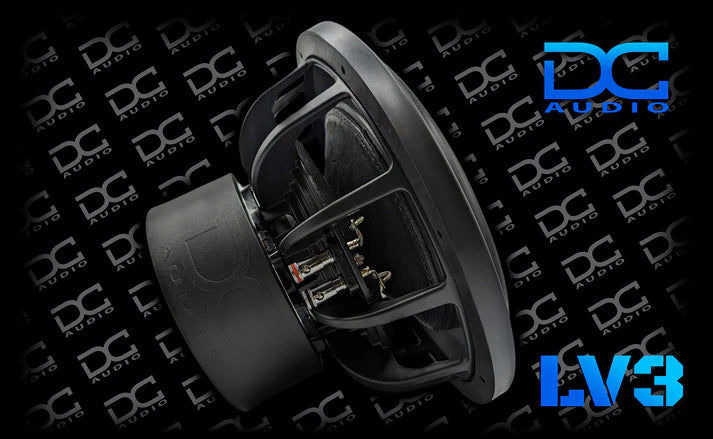

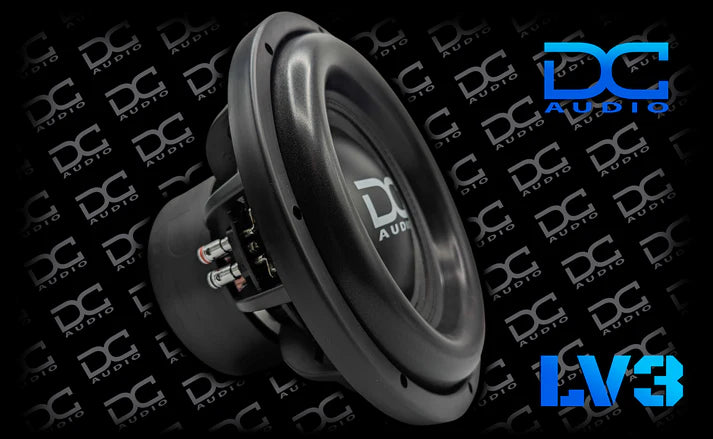

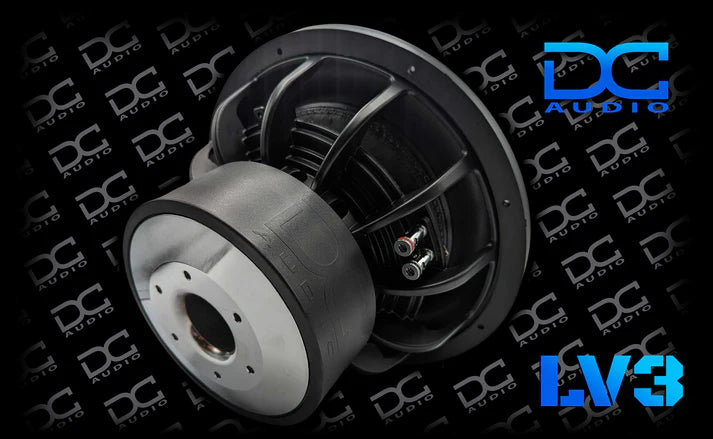

The DC Audio Level 3 (M4) is the ultimate daily driver subwoofer. Designed to deliver deep low-frequency output with serious authority, the Level 3 balances musical response with high-output capability.
Whether sealed or ported, this sub is engineered to move air while staying controlled.
🔥 1000 Watts RMS – Real Power Handling
-
1000 Watts RMS
-
2000 Watts Peak
-
Available in Dual 1Ω, Dual 2Ω, and Dual 4Ω
-
10”, 12”, 15”, and 18” models available
Perfectly matched with:
-
PS-1000x1
-
PS-2000x1
-
PS-3000x1 (for multiple subs)
-
PS-8000x1 (competition builds)
🧠 Advanced Motor & Cooling Design
The Level 3 features a 2.5mm aluminum shorting ring (demodulation ring) that:
-
Reduces inductance
-
Lowers distortion
-
Reduces power compression
-
Pulls heat from the voice coil windings
-
Acts as an internal heat sink
Combined with direct-to-coil venting, airflow cycles across the coil and aluminum ring simultaneously — improving cooling under heavy load.
💪 Motor & Suspension System
-
Triple stacked FEA-optimized motor
-
Deep gap motor structure
-
22.5mm Xmax
-
3” High-temp aluminum voice coil
-
Dual upgraded progressive spiders
-
Multilayer polymer foam surround
-
Extremely rigid non-pressed paper cone
-
Cast aluminum frame (no invert mount)
-
Chrome spring-loaded push terminals
-
Extra heavy-duty sewn tinsel leads
-
Rubber DC/LV3 embossed magnet boot
-
Rubber mounting gasket
This sub is built to take abuse and keep playing.
📊 Technical Specifications
| Specification | 10" | 12" | 15" | 18" |
|---|---|---|---|---|
| Mounting Depth | 6.25" | 6.75" | 8" | 9.5" |
| Mounting Hole | 9.35" | 11" | 14" | 16.75" |
| Outside Diameter | 11" | 12.5" | 15.7" | 18.5" |
| Voice Coil | 3.0" | 3.0" | 3.0" | 3.0" |
| Xmax | 23mm | 23mm | 23mm | 23mm |
| RMS/Peak | 1000/2000 | 1000/2000 | 1000/2000 | 1000/2000 |
| Ohm Options | D1/D2/D4 | D1/D2/D4 | D1/D2/D4 | D1/D2/D4 |
📦 Recommended Enclosures
🔹 Sealed
-
10” – .65 cu ft
-
12” – 1.0 cu ft
-
15” – 2.0 cu ft
-
18” – 3.5 cu ft
🔹 Ported
-
10” – 1.0 cu ft
-
12” – 1.25 cu ft
-
15” – 3.0 cu ft
-
18” – 5.5 cu ft
(Per subwoofer)
🎯 Ideal For
-
Loud daily drivers
-
Deep low-frequency builds
-
Sealed SQ systems
-
Ported high-output systems
-
Multi-sub setups
-
Street bass builds
This is DC’s most balanced daily-driver sub.
📦 What’s Included
-
DC Audio Level 3 Subwoofer
-
Rubber Mounting Gasket
-
DC Embossed Magnet Boot
